S/C‑band wideband RF systems covering 2‑6GHz suffer from wide frequency span and harsh electromagnetic environments. Common challenges include transmit‑receive crosstalk, signal reflection and impedance mismatch, which further trigger system self‑oscillation, degraded receiver sensitivity and unstable unit operation. The UIYBDC3030A2T6 drop‑in circulator is engineered for real‑world wideband link conditions to mitigate multiple RF interferences. It serves dual‑use requirements for high‑end military OEMs and high‑volume commercial communication manufacturing, acting as a core passive building block for civil‑military RF front‑ends.
This component fully covers the 2.0‑6.0GHz frequency range with well‑balanced RF performance across the full band, satisfying the operational requirements of various wideband RF equipment. Adopting lightweight TAB drop‑in compact form factor, it fits the prevailing trend of miniaturization and modular system integration. Supported by mature domestic manufacturing processes, it delivers high reliability alongside cost competitiveness. It meets strict military acceptance criteria and fits commercial mass production, cost‑optimization and local‑for‑import substitution projects.
Core Technical Specifications
| Parameter | Specification |
| Model Number | UIYBDC3030A2T6 |
| Frequency Range | 2.0 ~ 6.0GHz (Full Band) |
| Electrical Performance |
Operating at +20 ~+70℃： IL<0.8dB, ISO >13dB, VSWR<1.50 Operating at -40 ~ +20℃： IL <1.5dB @2.0~2.5GHz & 0.8dB @2.5~6.0GHz, ISO >13dB, VSWR <1.50 |
| Forward Power | 100W |
| Reverse Power | 100W |
| Connector Type | TAB (Drop-in) |
| Dimensions (L×W×H) | 30.5×30.5×15mm |
| Compliance & Reliability | Compliant with RoHS, REACH, and ISO 9001 certifications, with complete test data provided. |

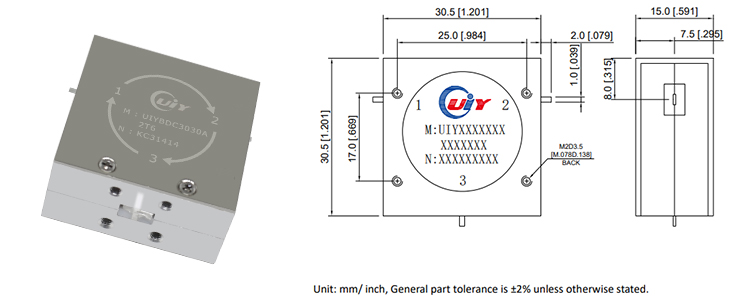

Product images / Technical drawings
Core Product Benefits
Compared with conventional narrow‑band components and generic wideband circulators, this device delivers comprehensive improvements in RF performance, system integration, environmental robustness and cost‑supply balance. One single part addresses both stringent military standards and high‑volume commercial manufacturing demands.
- Balanced Ultra‑wideband Performance, Reduced System Tuning Efforts: Optimized specifically for 2‑6GHz wideband links, the unit maintains tightly‑controlled full‑band parameter variation. It alleviates common pain points of unbalanced high/low‑band performance and heavy debugging workload for wideband hardware. Balanced link characteristics cut R&D tuning overhead and accelerate prototype validation and mass deployment for wideband RF platforms.
- Low Temperature Drift for Reliable Operation under Complex Conditions: Built with high‑stability ferrite magnet circuit technology, the circulator features minimal temperature drift. It tolerates dynamic operating stress including power fluctuation and abrupt load change. Performance degradation remains negligible over long‑term operation, lowering field failure rate and maintenance cost to guarantee consistent system performance.
- Standard Drop‑in Form‑factor for Higher Integration Efficiency: The industry‑standard TAB drop‑in package is compatible with mainstream RF cavity designs. Direct mechanical replacement is achievable in most cases without PCB redesign. It shortens R&D iteration and mass‑production lead‑time, perfectly matching miniaturized and modular hardware architectures.
- Localized Manufacturing for High Performance & Stable Volume Supply: Advanced domestic precision manufacturing ensures outstanding lot‑to‑lot consistency and steady lead‑time, with RF performance comparable to established imported counterparts. It balances military‑grade reliability and commercial cost targets, making it a preferred option for component selection, volume sourcing and import substitution.
Typical Applications
- Wideband RF T/R Modules: Optimized for modular integration of 2‑6GHz wideband transceiver assemblies. Low insertion loss and high isolation suppress Tx‑Rx crosstalk, wideband spurious emission and self‑oscillation. Compact footprint enables miniaturized hardware while preserving transceiver performance for high‑density mass production.
- Military Radar & Electronic Warfare Systems: Suited for radar detection, spectrum monitoring and EW equipment operating in dense electromagnetic environments. Superior isolation rejects antenna reflected spurs and cross‑band interference to purify RF links, improving detection accuracy and anti‑jamming capability to satisfy military qualification requirements.
- Airborne & Space‑borne RF Subsystems: Qualified for high‑reliability aerospace missions. Low temperature drift and excellent batch consistency mitigate signal mismatch and power reflection induced by wide temperature swing and dynamic load, preserving link quality for high‑end airborne and space‑borne payloads.
- Commercial Wideband Communication & Base Station Front‑ends: Fit for mass‑produced civilian wideband radios and small‑cell base stations. It reduces link loss and optimizes system impedance matching to minimize debugging‑related failures. Standardized parameters plus reliable supply chain support hardware iteration and local‑ization upgrade for commercial products.
- Precision RF Test & Measurement Systems: Deployed in RF calibration and wideband test instruments. Unidirectional signal transmission isolates load reflection and back‑feeding interference, cleaning up test paths and eliminating measurement deviation caused by spurious signals to sustain long‑term measurement accuracy.
- RF Power Amplifier Protection & Antenna Duplex Circuits: Capable of 100W bidirectional power handling for PA modules and antenna duplex circuits. It rapidly blocks reflected power from load mismatch, preventing self‑oscillation and component burnout caused by reverse signal injection, improving overall system stability and service life.
Summary
The UIYBDC3030A2T6 drop‑in circulator delivers robust 2‑6GHz ultra‑wideband coverage, consistent RF metrics and broad environmental compatibility for diverse civil‑military wideband RF links. Featuring easy integration, superior lot‑to‑lot consistency and favorable total cost of ownership, it fulfills military high‑reliability specifications, commercial mass‑production cost targets and import‑substitution requirements. It represents a preferred component solution for 2‑6GHz RF front‑end designs.
